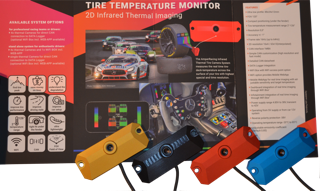

AmperRacing CAN-Tyre-Camera-System consists of:
- • four Tyre-Cameras
- • wiring harness
Optional:

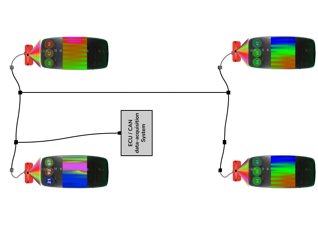

- • central data acquisition unit

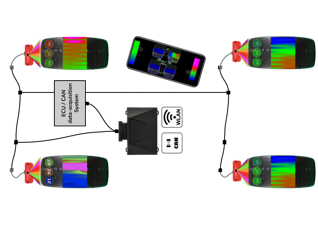

- • app based monitoring system
Tyre-Camera-System performance parameters

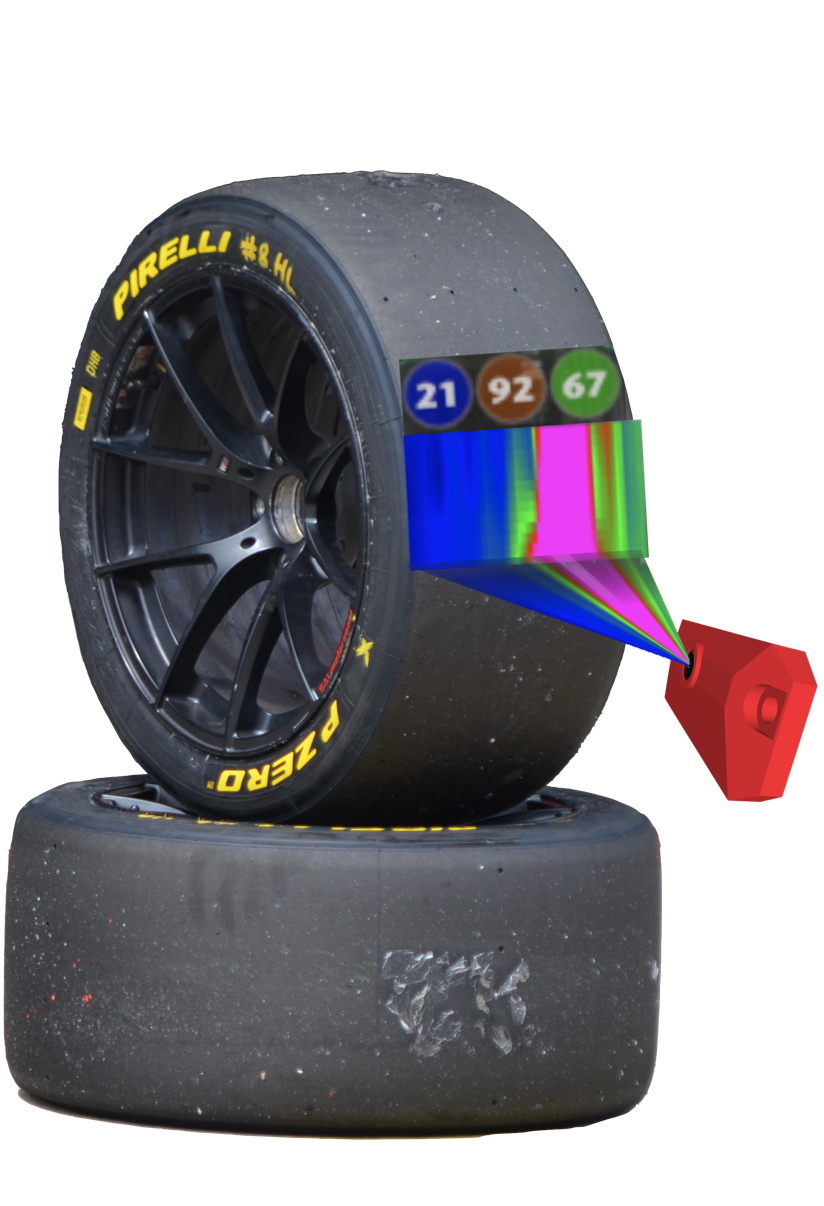

- • real time thermal imaging of the full tyre width
- • 120° FOV (flied of view)

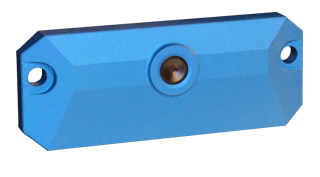

- • ultra low profile camera approx. 88 x 34 x12mm
- • operating voltage +4.85V to +18V
- • reverse polarity protection
- • max voltage rating +/-38V
- • std. automotive wiring harness
- • frame rate of 10 thermal images per second
- • +/- 0.5 degC resolution
- • measurement precision up to 1 degC (RMS)
- • up to 64 measurement points per tyre
- • temperature range 2.5 - 126.5degC
- • adjustable CAN-ID
- • selectable mode of operation
